DCC Tools and Pipelines

This page contains selected DCC tools and pipelines I have contributed to. All tools are documented on the team Confluence.

Table of Contents

• Create Tools Function Library
• Perforce Menu (Shared across all DCCs)
• Exporter / Send to UE (from Maya and Substance Painter)
• Maya: Send to Substance Painter
• Maya: UV Unwrapping Tool
• Maya: Animation Preview Tool for Rigged SKM
• Maya: Mesh Edit Utility Tools
• Painter: Texture Baker
• DCC Software and Env Path Setups
• Claude Skills
• Other Related Out of Time and Core Platform

Create Tools Function Library

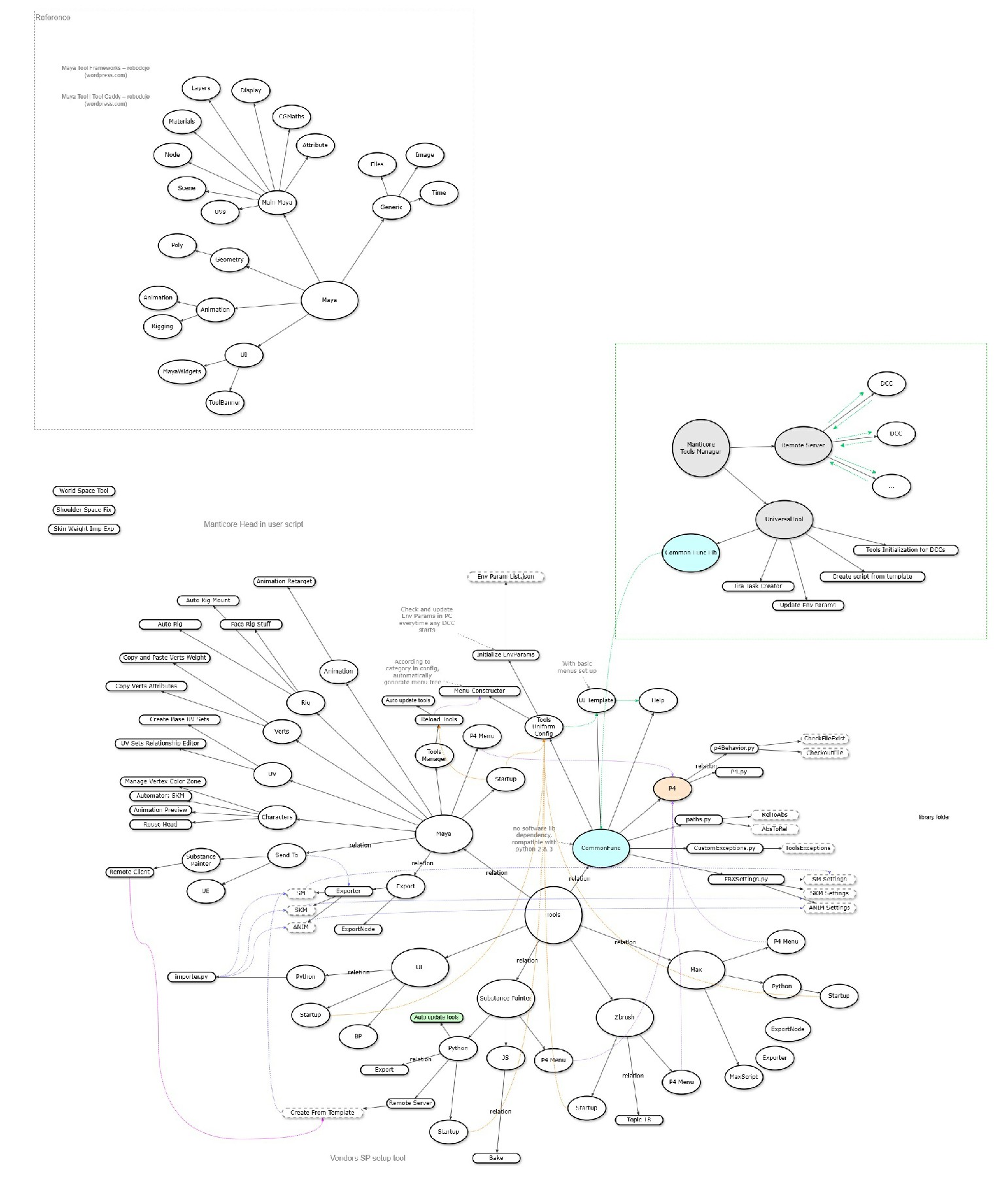

As we built more and more Python tools for DCCs, we found that many functions were shared across different tools. To avoid duplication and improve maintainability, we built a shared internal function library. Here is the framework:


We also established internal coding standards and tool templates with standardized default setups — including help menus, debug menus, and UI guidelines. These ensure all tools are consistent in look and behavior, intuitive for artists to use, and straightforward for technical artists to maintain.

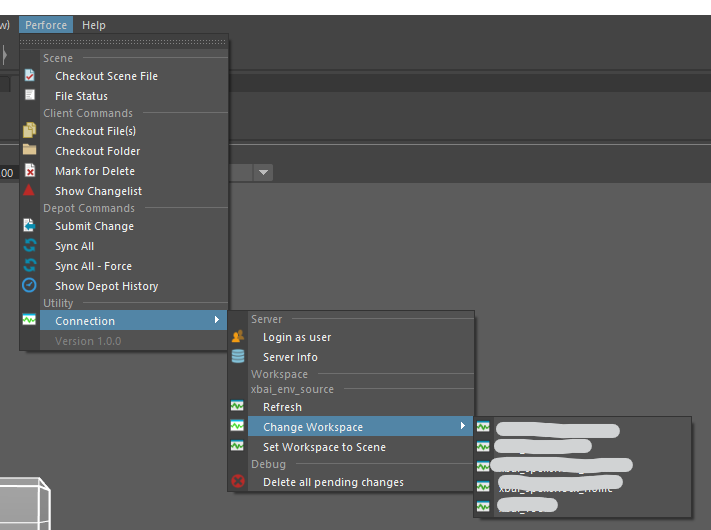

Perforce Menu (Shared across all DCCs) (Python)

We use Perforce for source control, and tighter DCC integration was in high demand. We built a core Perforce library in the shared tools library, then adapted the menu UI for each DCC software, ensuring a consistent experience regardless of which application the artist is working in.

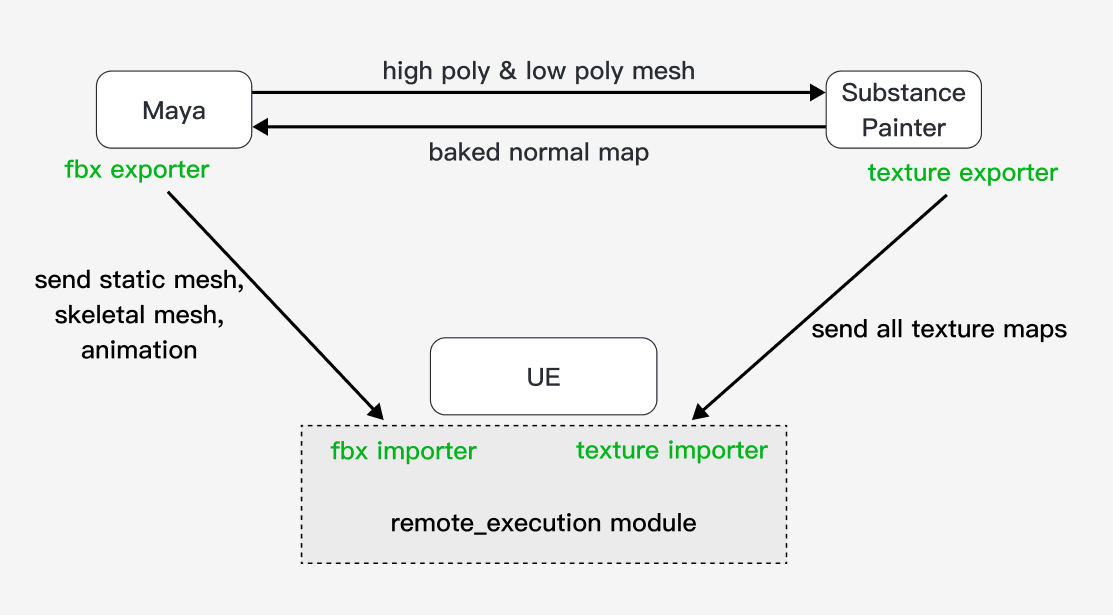

Exporter / Send to UE (from Maya and Substance Painter)

The Maya Exporter consists of several parts: the Export Node, the Export function, and the Send to UE function.

• The Export Node is a custom Maya node type with attributes for a wide range of export settings. It also stores UE importer settings, which are passed along by the Send to UE function.
• The Export function handles the full export process in the following steps:
  • Combines meshes and sets collision meshes accordingly
  • Triangulates the mesh if not already done
  • Deletes history on meshes
  • Runs any custom pre-export scripts
  • Calls Maya's native export function, applying our custom settings based on mesh type and avatar part
  • For animation exports, skips all meshes and exports only animation data
  • Runs any post-export scripts
  • Handles source control for exported files
• The Send to UE function locates UE's RemoteExecution module and sends the import command to call the UE importer function, passing importer settings as arguments.

The Substance Painter Exporter also includes an Export function and a Send to UE function.

Maya: Send to Substance Painter

This tool enables one-click sending of models from Maya to Substance Painter for normal baking and texture painting. Meshes are required to have _low and _high suffixes so that Painter can automatically recognize them — the _low mesh must have its UVs properly unwrapped, and the details from the _high mesh will be baked down as its normal map.

The tool also handles Painter software launch/restart and project creation automatically.


Maya: UV Unwrapping Tool

This tool provides UV unwrapping and UV shell editing functions. It consists of three parts: Create Base UV, UV Utility Functions, and Smart Trim Auto Unwrapping.

• Create Base UV generates the base UV layout for static meshes following our custom setup.
• UV Utility Functions is a collection of shell transform, selection, and unwrapping utilities.

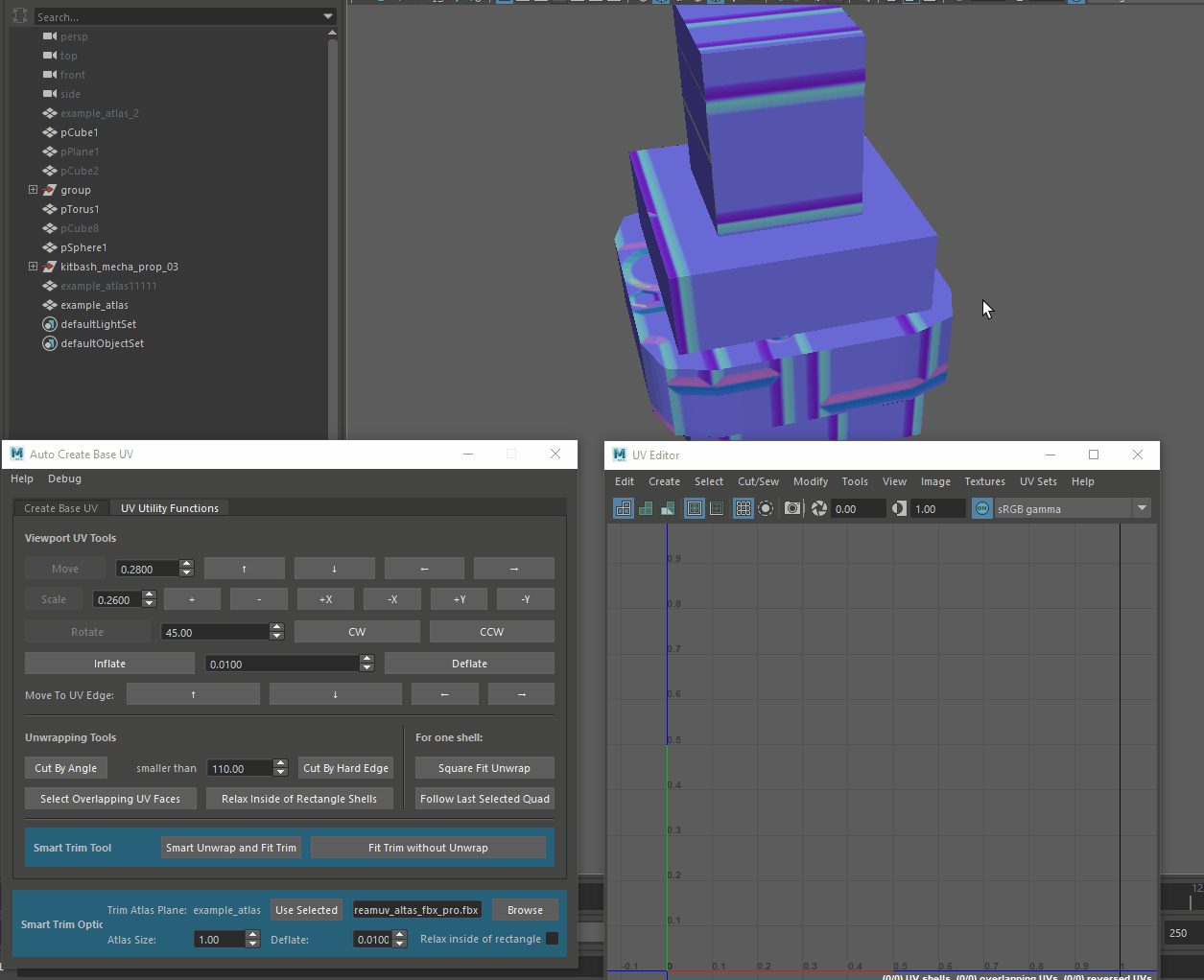

• Smart Trim Auto Unwrapping is designed for meshes using trim sheets. It unwraps the UVs, finds the rectangle area on the trim sheet that best matches each UV shell's size and shape, and automatically transforms each shell to align with the corresponding trim sheet section.


Maya: Animation Preview Tool for Rigged SKM

This tool allows rigging artists to inspect and verify rig setups for cosmetics and gear. It can bring in other Maya files as non-destructive references — including animation files, avatar body files, and head files — without modifying those source files.

Maya: Mesh Edit Utility Tools

This tool contains two utilities: Material Reorder and Vert Attributes Transfer.

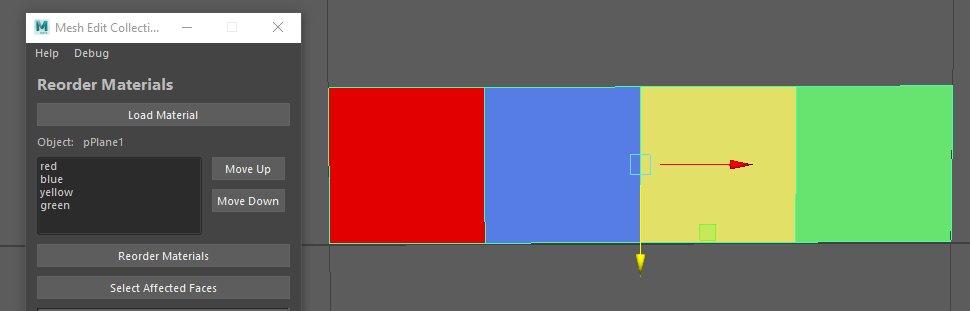

Material Reorder — Material order in an FBX mesh is determined by face index order; materials assigned to lower face indices appear first. To reorder materials, we reorder the underlying face indices by splitting out the faces for each material starting from the lowest index, then recombining and merging them.

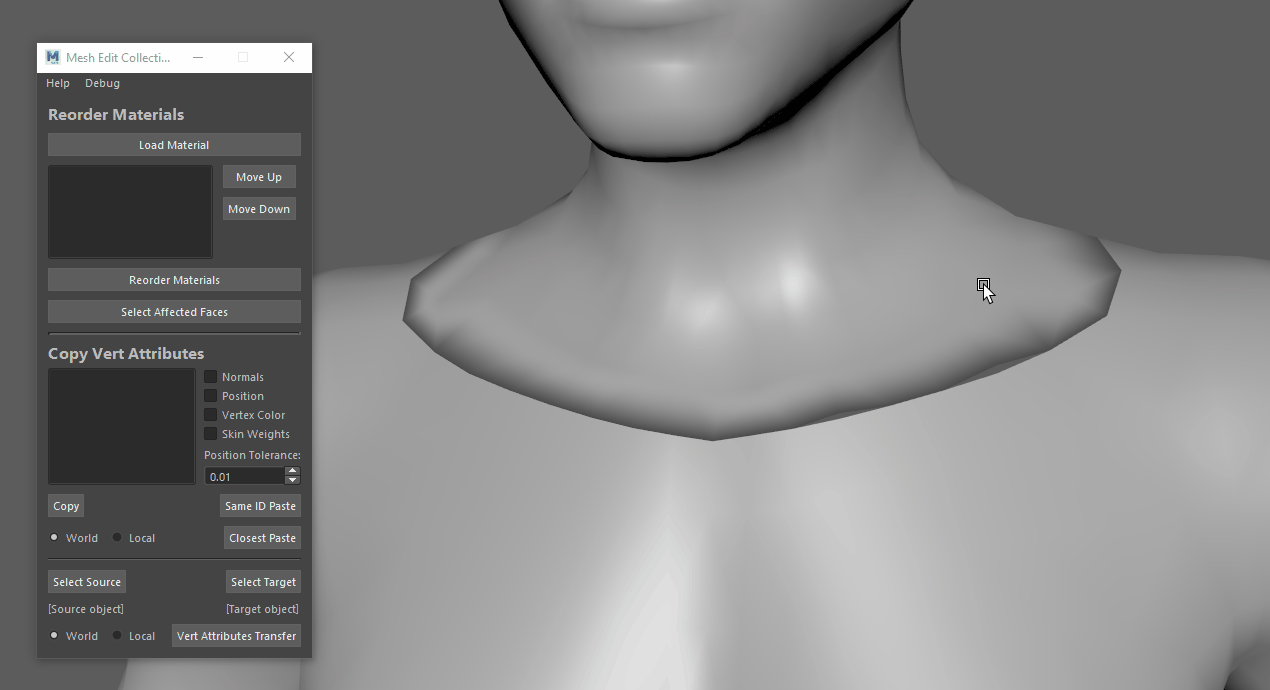

Vert Attribute Transfer — Copies the most commonly used vertex attributes and pastes them either to the closest vertex or to the vertex with the matching index.

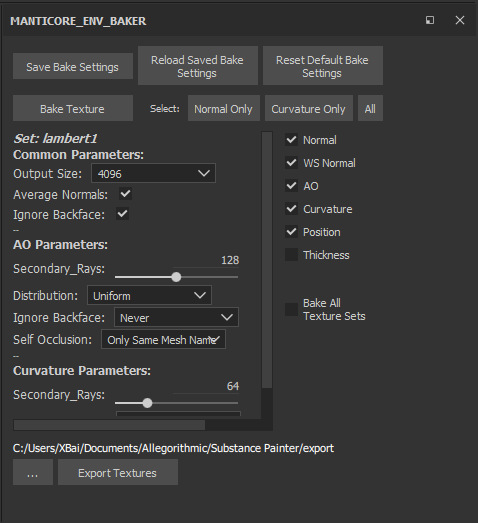

Painter: Texture Baker

This tool is a curated collection of our most-used texture baking settings, with sync support for software settings and quick-access shortcuts for texture selection and baking menus. It is a JavaScript plugin with several Python functions invoked via command line.


DCC Software and Env Path Setups

Every time new team members join, or we set up a new machine, a full DCC software reconfiguration is required. We streamlined this process as much as possible:

• We built a setup executable that one-click modifies environment paths and software offline settings.
• For each DCC, we created a startup Python file that runs all necessary function calls in sequence on software launch, ensuring all custom settings and plugins are loaded correctly.

Claude Skills

As our team ramps up with AI tooling, we have also started distilling workflows and domain knowledge into reusable skill files.
